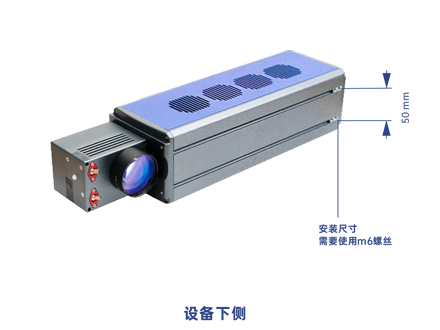

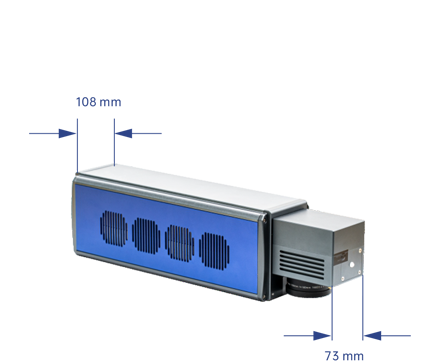

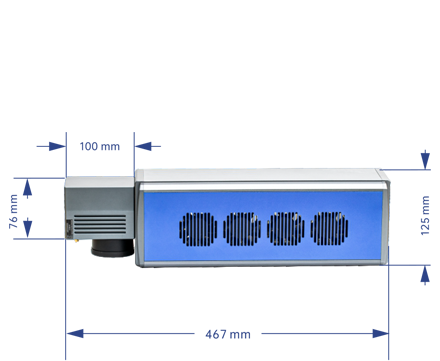

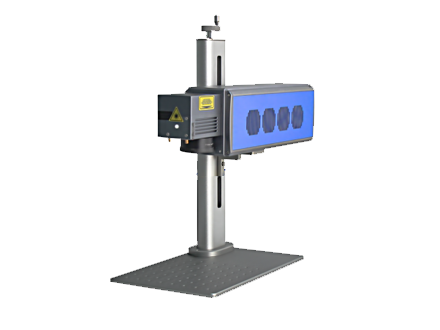

DL-A8

Model Series:DL-A8 Integrated Series

Model: DL-A8-20T /DL-A8-30T

Laser Model:All-in-One Integrated Lasers

Power:≤20w/≤30w

Beam Mass:≤2

Pulse Repetition Frequency:30-80 kHz

Laser Wavelength:1064nm

Output Power Stability: ＜5%

Design Life:Around 100000 working hour (non-serviceable)

Marking Range:70-175MM(Range selectable)

Depth of Engraving: ≤1mm (Depends on power and time)

Engraving Speed:≤8000m/s

Repeatability:±0.002

Minimum Marker Line Width:0. 1mm

Minimum character height:0.15mm

Cooling Methods:Built-in air-cooling

System Power Supply:350W / 220V / 50Hz

Temperature and humidity:0~40°, 30%≤RH≤85%，Air conditioning is required for out-of-range use

Oil mist, Condensation:Not allowed

Operating System:Chinese software

File Formats:The software supports marking content such as text, 2D code, barcode, graphics, etc.

External Dimensions:108X125X467 mm
