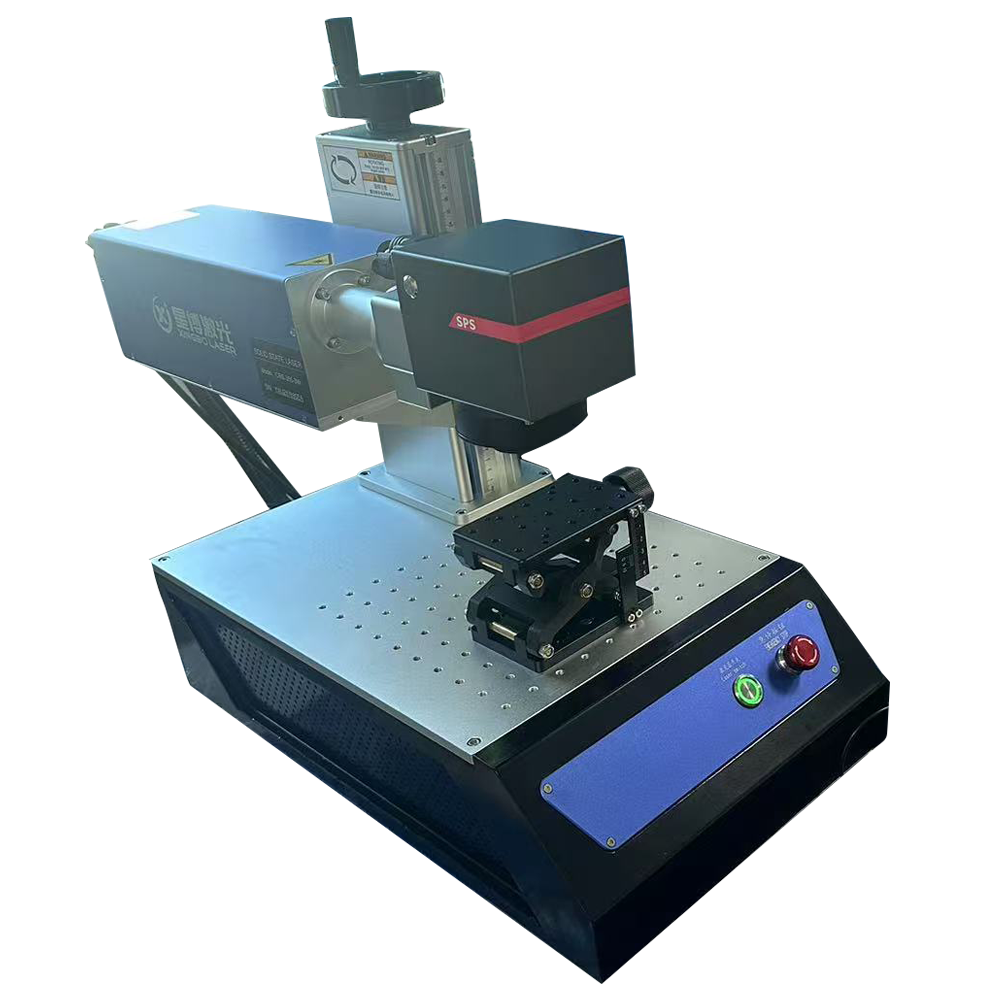

KVF-N010
Model No.: KVF-N010-5W
Wavelength: 355nm
3D Subsurface Engraving Area: 50*50*150mm/70*70*150mm
2D Surface Engraving Area:Up to 175*175mm (lens-dependent)
Applicable Material (Subsurface Engraving): Glass, Crystal
Applicable Material (Surface Engraving): Plastics, Glass, Crystal, Wood,Leather, Metal
Z-Axis Control: Precision screw-lift column with a braking stepper motor for high accuracy, controlled by the software
Input Voltage: 100-230V / 50-60Hz
Laser Control Board: RKCAD
Software: RKCAD with subsurface engraving function Supported File Format
1.3D: STL, OBJ
2.Vector: AI, PLT, DXF, JWW, DWG
3.Image: Grey scale depth map, BMP, JPG,GIF, PNG, ICO, ICNS,SVG, TGA, TIFF, WBMP, WEBP, XBM
Supported O/S: Windows 11/10/7, 32/64bit
Minimum Computer Hardware Requirement: Intel i5 7th generation or above,16GB RAM or higher, 2GB, Graphics Card or higher (Graphic cardmust support DX12/OpenGL Version 2.1).
Laser Beam Quality (m²) : <1.1
Max. Subsurface Engraving Speed: 6000 points/s
Max. Surface Marking Speed: 3000 mm/s
Repeatability: ±0.001mm
Power Consumption: 850W
Cooling System: Water Cooling
Operating Temperature: 0-30℃ (32-86℉)
Machine Weight (Include water chiller): 50kg
Gross Weight: 60kg
Package Size: 70*50*95cm
